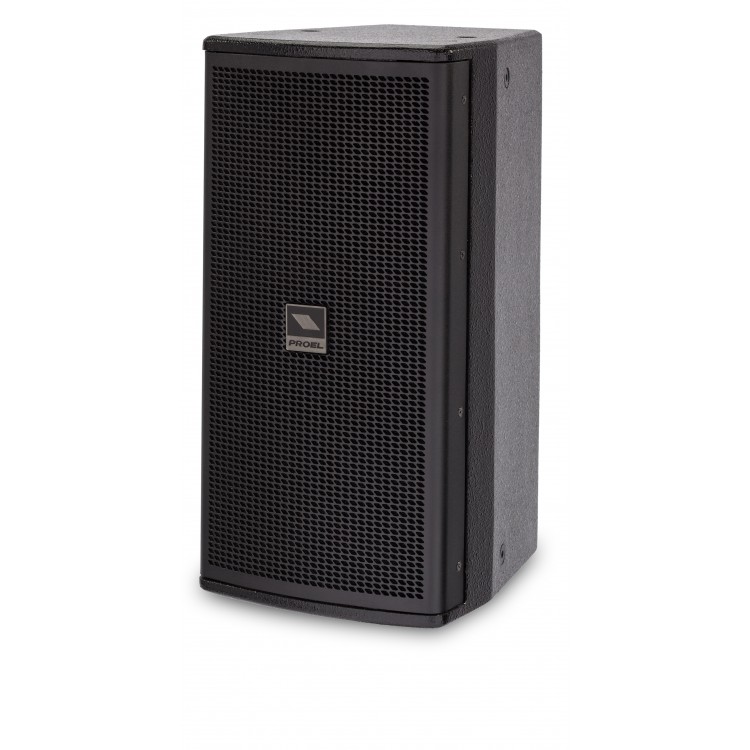

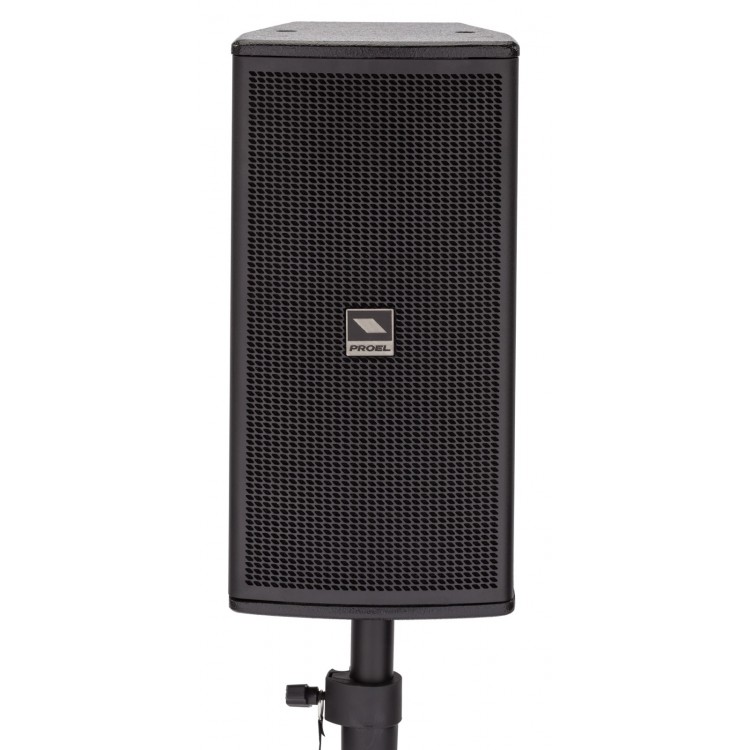

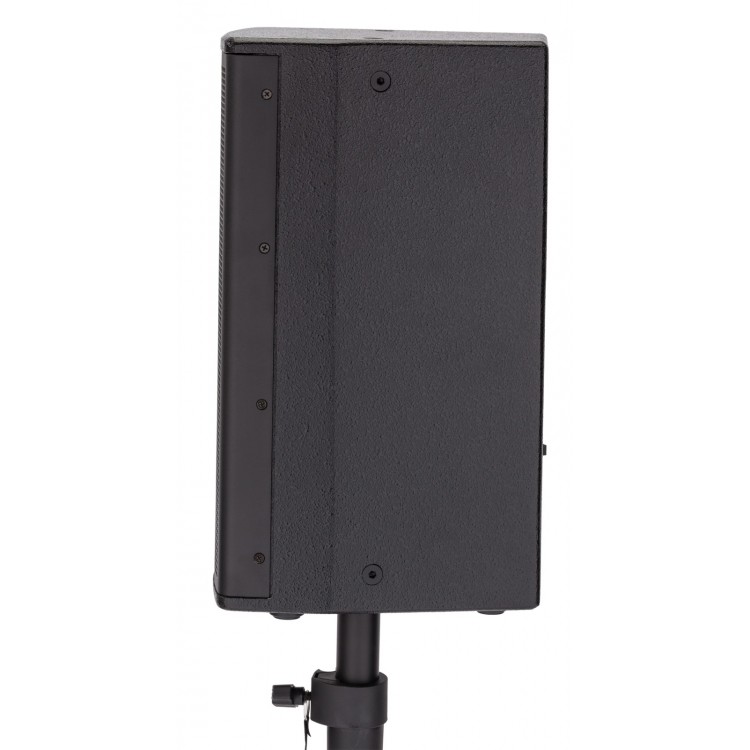

The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package. For the construction of the cabinets we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy. Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper protection for years of service. The dual-angle pole holder featured in 8”, 10”, 12” and 15” models offers the possibility to obtain a more uniform coverage of the audience. For the high frequency reproduction of LITE Series we have designed wide-dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion. The high-excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight basses. The LITE Series includes 4 passive models, featuring carefully designed crossover filters with HF electronic protection. The choice of black or white cabinet, built-in flying points and a wide range of accessories make them suitable for any kind of fixed installation.
-1” compression driver with 1” VC on a constant coverage 60° x 40° horn
-8” woofer with 1.5” VC
-150W continuous power rating
-Frequency response 70 Hz - 20 kHz
-Lightweight plywood cabinet
-1 rear handle
-4 x M10 flying points
-Available in BLACK and WHITE
-1” compression driver with 1” VC on a constant coverage 60° x 40° horn
-8” woofer with 1.5” VC
-150W continuous power rating
-Frequency response 70 Hz - 20 kHz
-Lightweight plywood cabinet
-1 rear handle
-4 x M10 flying points
-Available in BLACK and WHITE
System type: 2-way vented enclosure
High Frequency Device: 1” compression driver with 1" VC
Low Frequency Device: 8” woofer with 1.5” VC
Angular Coverage: 60° H x 40° V
Power Rating Continuous: 150W
Power Rating Program: 300 W
Power Rating Peak: 600 W
Impedance: 8 ohm
Frequency Response: 70 Hz - 20 kHz
SPL (1w / 1m): 92
Connectors: 2 x SPEAKON
Flying System: 4 x M10 top/bottom, 3 x M5 rear
Construction: Plywood
Cabinet Colour: Black
Handles: 1 x rear
Mounting Pole: 1 x bottom, dual angle
Dimensions (W x H x D): 220 x 442 x 260 mm
Weight: 7.5 kg / 16.5 lbs.
High Frequency Device: 1” compression driver with 1" VC
Low Frequency Device: 8” woofer with 1.5” VC
Angular Coverage: 60° H x 40° V
Power Rating Continuous: 150W
Power Rating Program: 300 W
Power Rating Peak: 600 W
Impedance: 8 ohm
Frequency Response: 70 Hz - 20 kHz
SPL (1w / 1m): 92
Connectors: 2 x SPEAKON
Flying System: 4 x M10 top/bottom, 3 x M5 rear
Construction: Plywood
Cabinet Colour: Black
Handles: 1 x rear
Mounting Pole: 1 x bottom, dual angle
Dimensions (W x H x D): 220 x 442 x 260 mm
Weight: 7.5 kg / 16.5 lbs.
