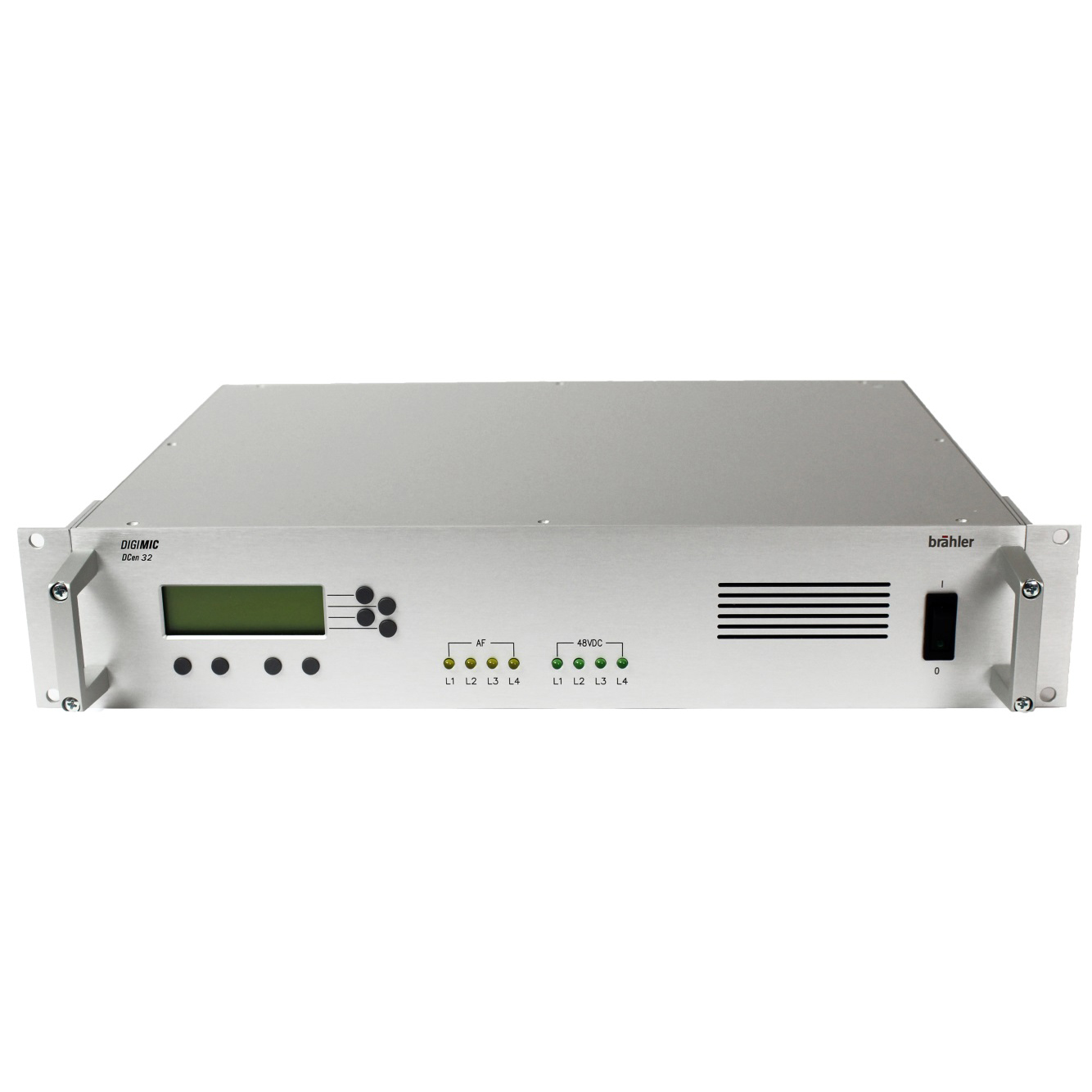

DIGIMIC DCen32: Central unit for 32 channels with Dante audio interface
-the DCen32 central control unit controls all connected delegate units within the DIGIMIC32 channel discussion system, automatically configures them and directs the digital audio exactly where you need it.
-Includes all popular microphone modes, including automatic, push to talk and speaking, voting (with CMicCSV), chairman priority and VIP management.
-offers four independently operated D9 outputs for connecting up to 100 delegate units to four chains.
-once a device is connected to the central unit, it is immediately ready for use without further adjustments.
-offers a user-friendly, menu-driven configuration tool to adapt the setup to local conditions if required.
-for additional functionality, the DCen32 is equipped with a network interface to allow remote control from various applications via brählerOS, e.g. software microphone control on a geographic virtual microphone image and name management.
-for improved sound reinforcement, the DCen32 has a built-in, easy-to-use 8x32 audio matrix that allows all incoming audio signals from any microphone line to be routed to a specific output or DANTE channel. This ensures clear audio management for even more complex setups with a single control unit.
-In addition, connected chairman units can be routed separately to each output for individual mixing.
Digital Audio
48 kHz sample rate
20 – 20,000 Hz frequency response
Approx. 1 ms latency time
Low susceptibility to mobile phone interference like Bluetooth, UMTS, WiFi etc.

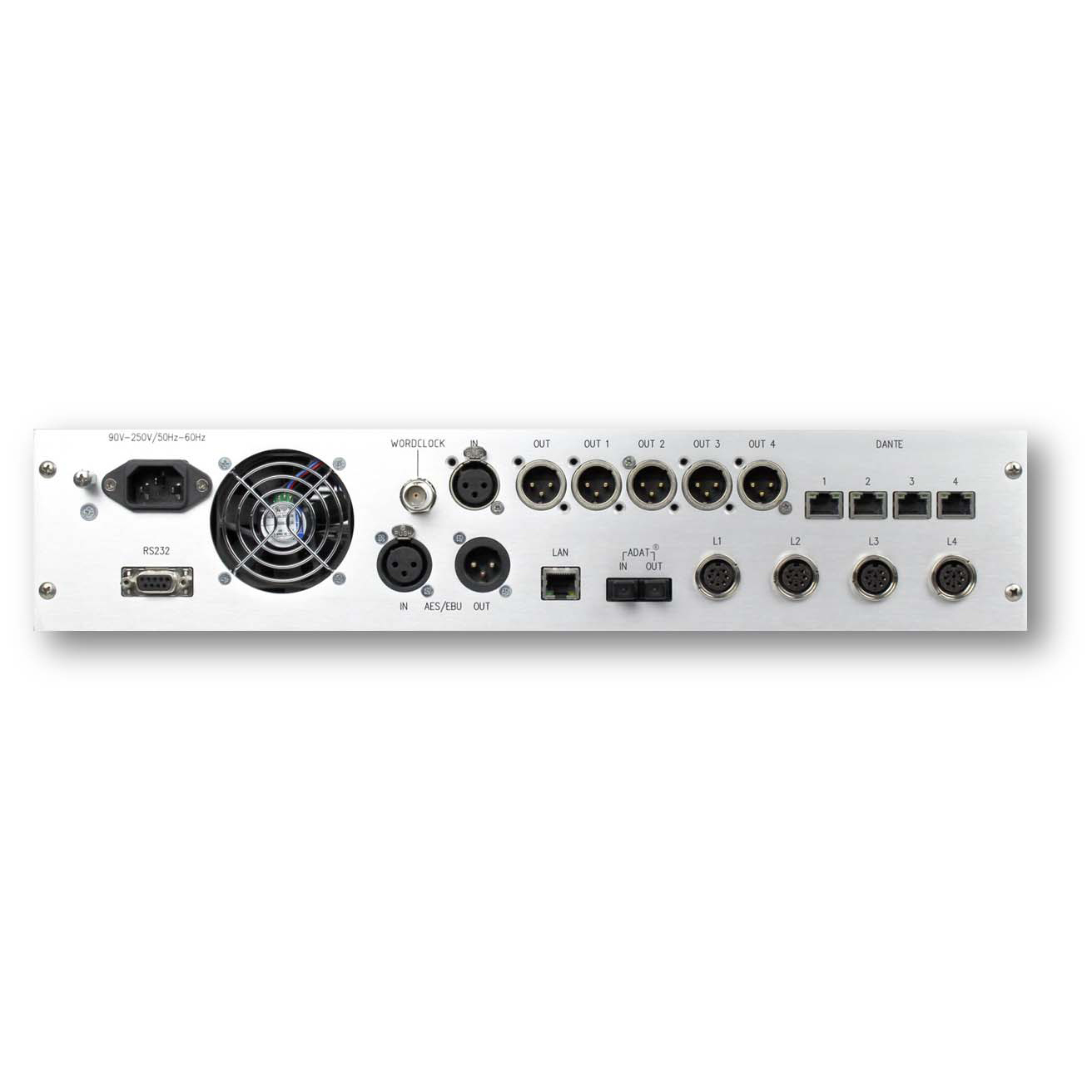

Audio device interfaces
ADAT input and output
AES/EBU input and output (XLR)
One analogue input (IN) XLR balanced
Five analogue outputs XLR-plug: 1 Master
+1 separate for each line

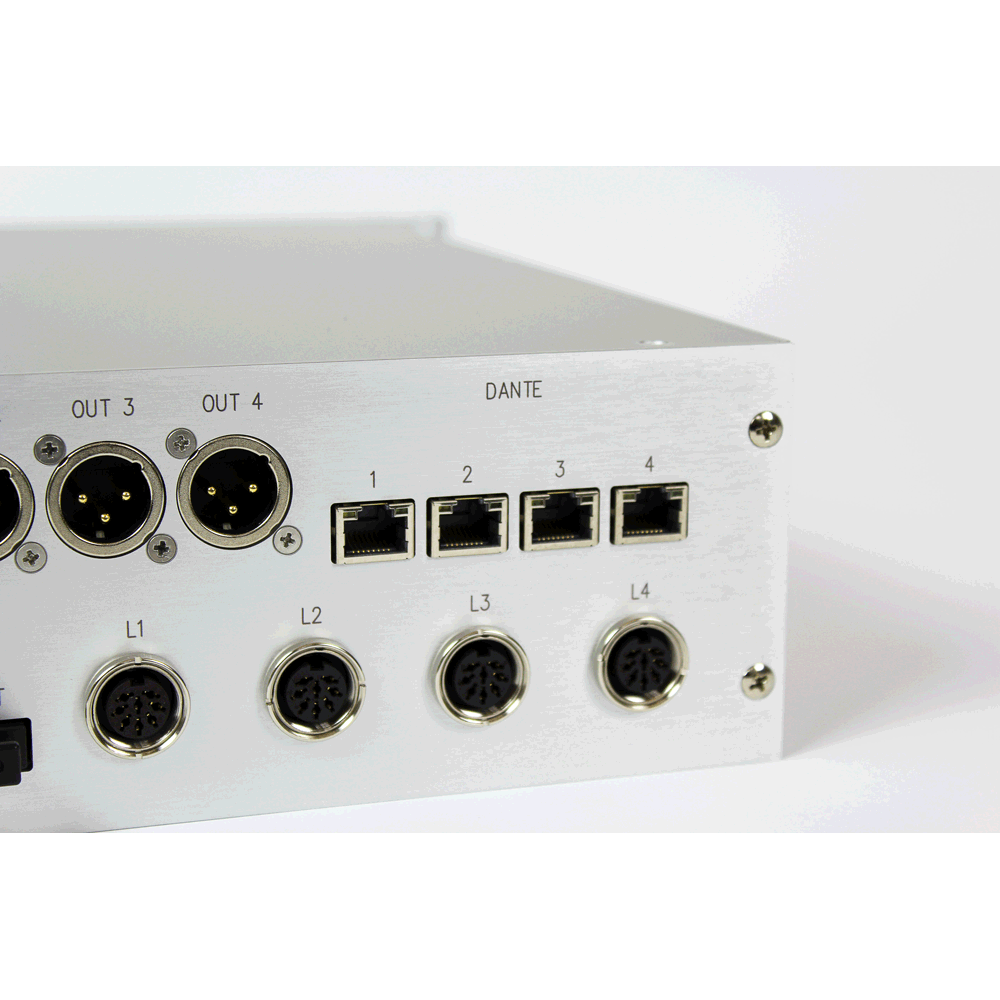

Dante™ Interface
Configurable Ethernet switch for redundant Dante digital output (Dante 1-4)
4 port integrated network switch
Link Speed: 1 Gbps
Sample Rate: 48 kBps
Sample width: 24 bit
Maximum number of input channels: 64 (32 languages fixed / 16 Floor audio inputs fixed)
Maximum number of output channels: 64 (32 languages fixed)
Control input and output
Network interface (TCP/IP)
Wordclock input
RS232 interface (CR9-socket) for microphone keyboard, media Control, camera systems, etc.
Connection of units
UNITS L1 ... L4 (D9-cable)
Up to 100 delegate units on four chains or several interpreter consoles on one chain and delegate units on the other chains
Line extension with Power Supply DExt32
