V12PLUS

喇叭

V12PLUS

V PLUS series is the evolution of the acclaimed V series of PROEL powered loudspeakers delivering absolute value in terms of performance, engineering and design at a more affordable cost. These ultra-portable speakers combine, in carefully engineered and light-weight cabinets, the clearest and most accurate PROEL sound with Class D amplifier technology and Switch Mode Power Supply, offering an unbeatable PA solution at its price point.
The three models, V10PLUS, V12PLUS and V15PLUS, feature an extremely efficient amplifier module capable of delivering 600 W of robust power to the transducers. Thanks to the use of SMPS technology, this power comes in an ultra-lightweight package, making the V PLUS the most portable PROEL speakers ever. The power module is hosted in a fully sealed aluminium box, which provides protection, perfect insulation of the cabinet from the outside and extremely efficient cooling.
Thanks to the carefully selected speakers and to the sophisticated active electronics, including dual CLIP LIMITERS for an undistorted sound even at the loudest level, the sound of the V PLUS has been precisely tuned in every details, in order to provide unheard performance in this price range.

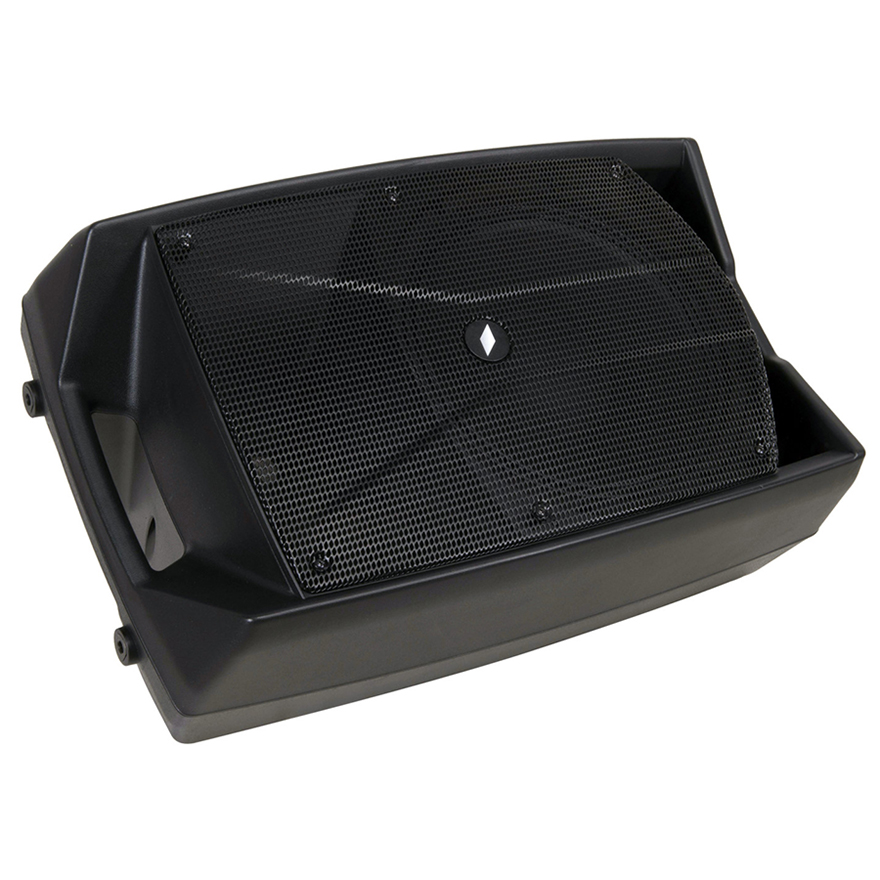

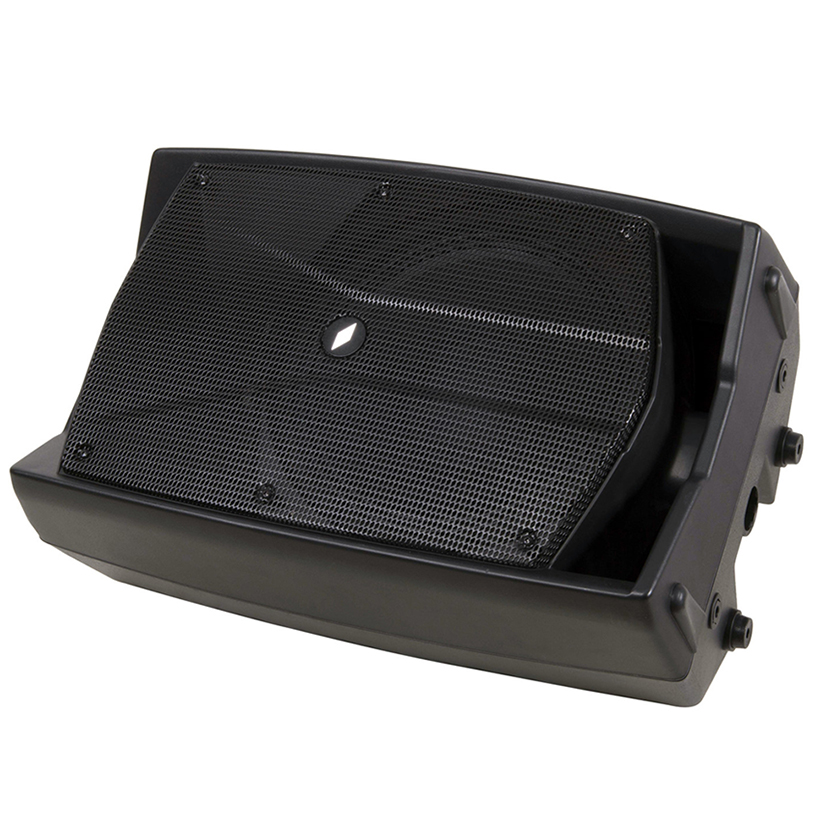

The V PLUS cabinets, expression of the most advanced Italian design, include a super-comfortable luggage-style top handle for an effortless portability. The slanted shape allows the speakers to be laid on their side and used also as stage monitors.

• 2-way bi-amped loudspeaker system
• 1” NEODYMIUM compression driver
• Constant coverage 90° x 60° horn
• High-excursion 12” woofer with 2” VC
• 600 W Class D + AB power amplifier with SMPS
• Integrated active processor with dual LIMITER circuit
• MIC/LINE input with 2-band EQ
• Front LED with ON or SIGNAL/CLIP selection
• SPL MAX: 124 dB
• Frequency response: 50 Hz - 20 kHz
• Ultra-lightweight reinforced polypropylene cabinet
• Top handle for effortless transport

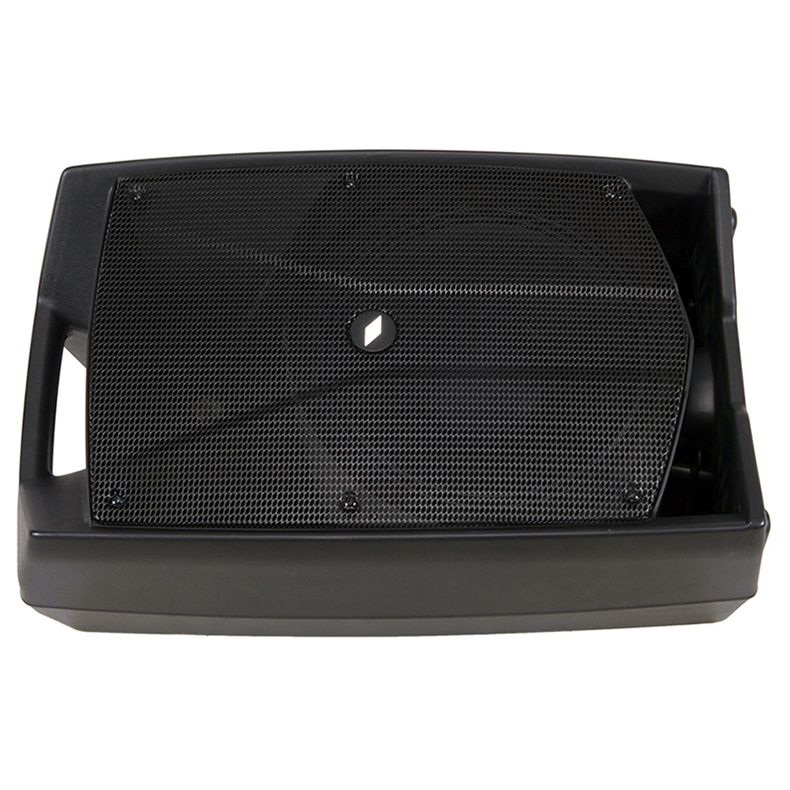

• Slanted shape for the use as a stage monitor
• Four M10 flying points
• 13 kg total weight

System type 2-way vented enclosure
High Frequency Device 1” neodimyium compression driver
Low Frequency Device 12” woofer with 2.5” voice coil
Angular Coverage 90° H x 60° V
Total peak power 600 W
HF Amplifier Continuous Power 50 W Class AB
LF Amplifier Continuous Power 250 W Class D
Power Supply SMPS
Processing Analog
Frequency Response 50 Hz - 20 kHz
Max SPL 124 dB

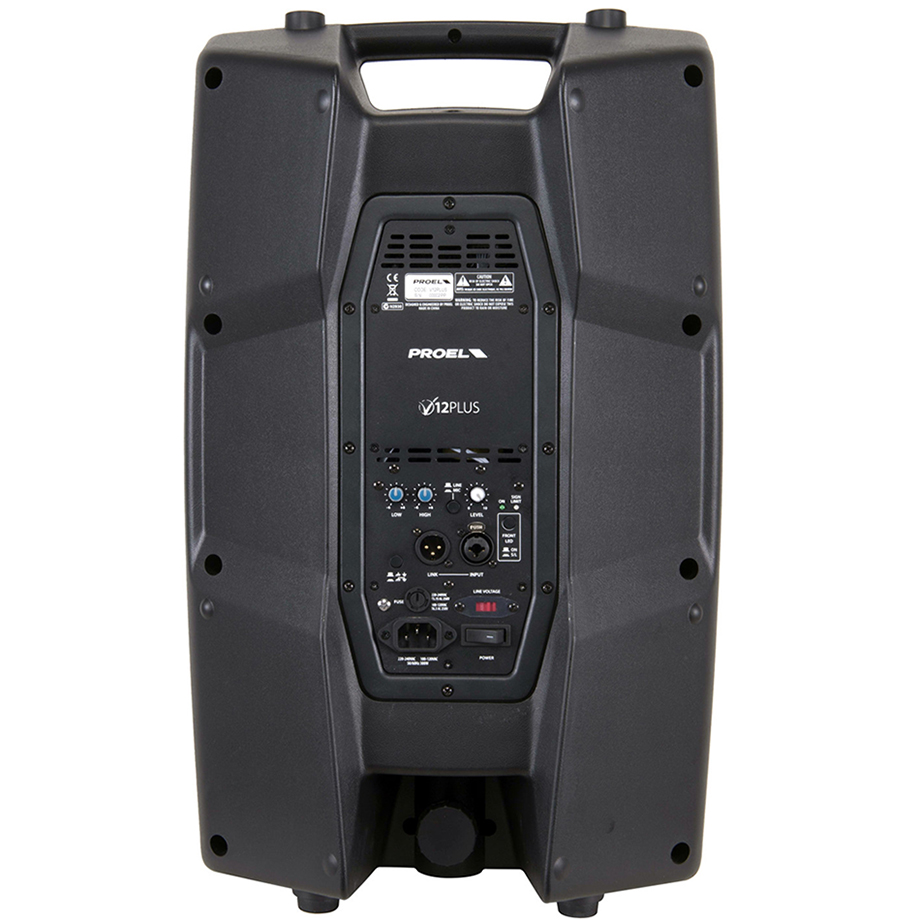

Connectors IN: COMBO, LINK: XLR M
Controls LEVEL, LINE/MIC selector, LOW EQ, HIGH EQ, GND LIFT, FRONT LED selector
Monitor Taper 44°
Flying System 4 x M10 - top/bottom
Construction Polypropylene
Cabinet Colour Black
Handles 1 x top
Mounting Pole 1 x bottom
Power Supply 230 VAC or 120 VAC 50/60 Hz
