SA180S

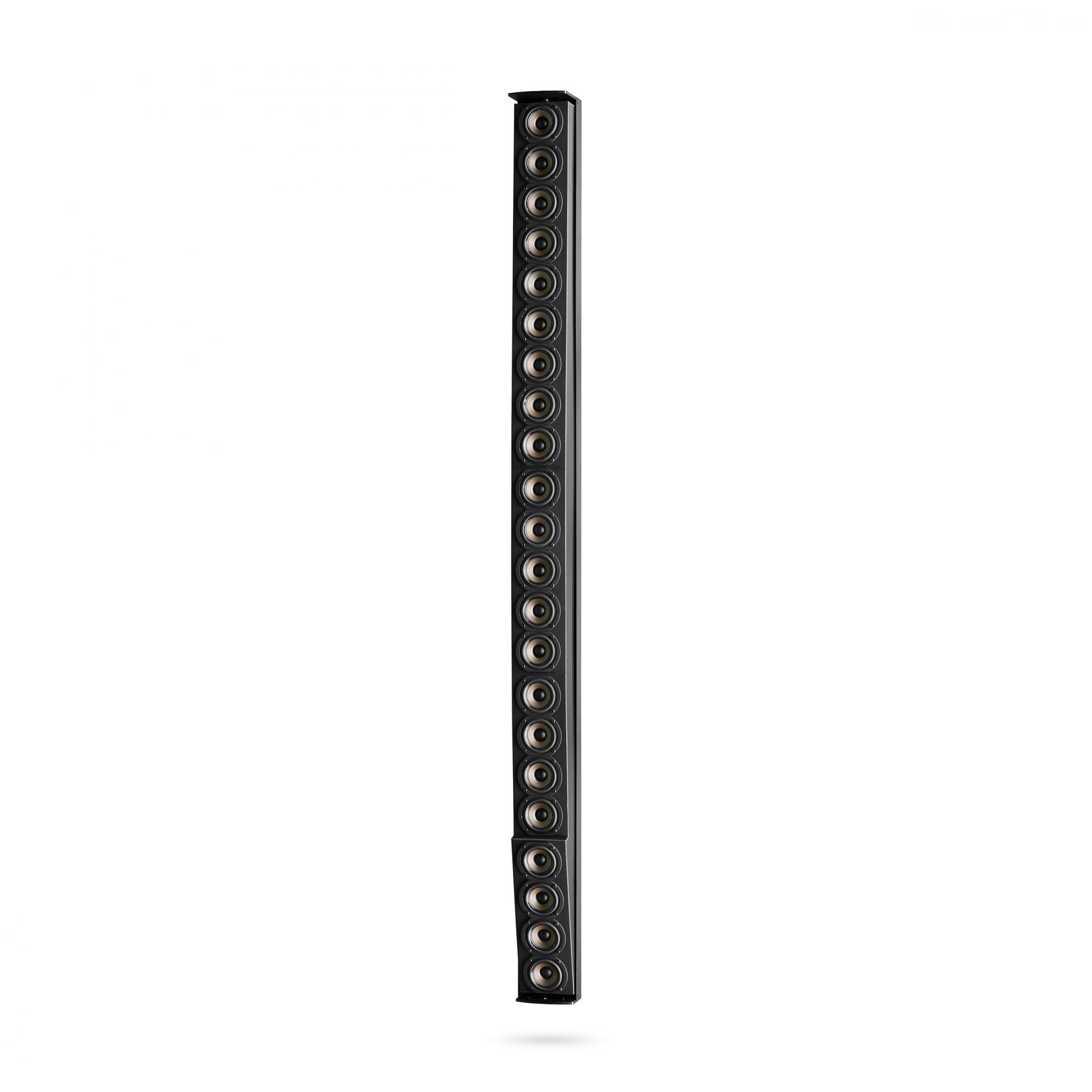

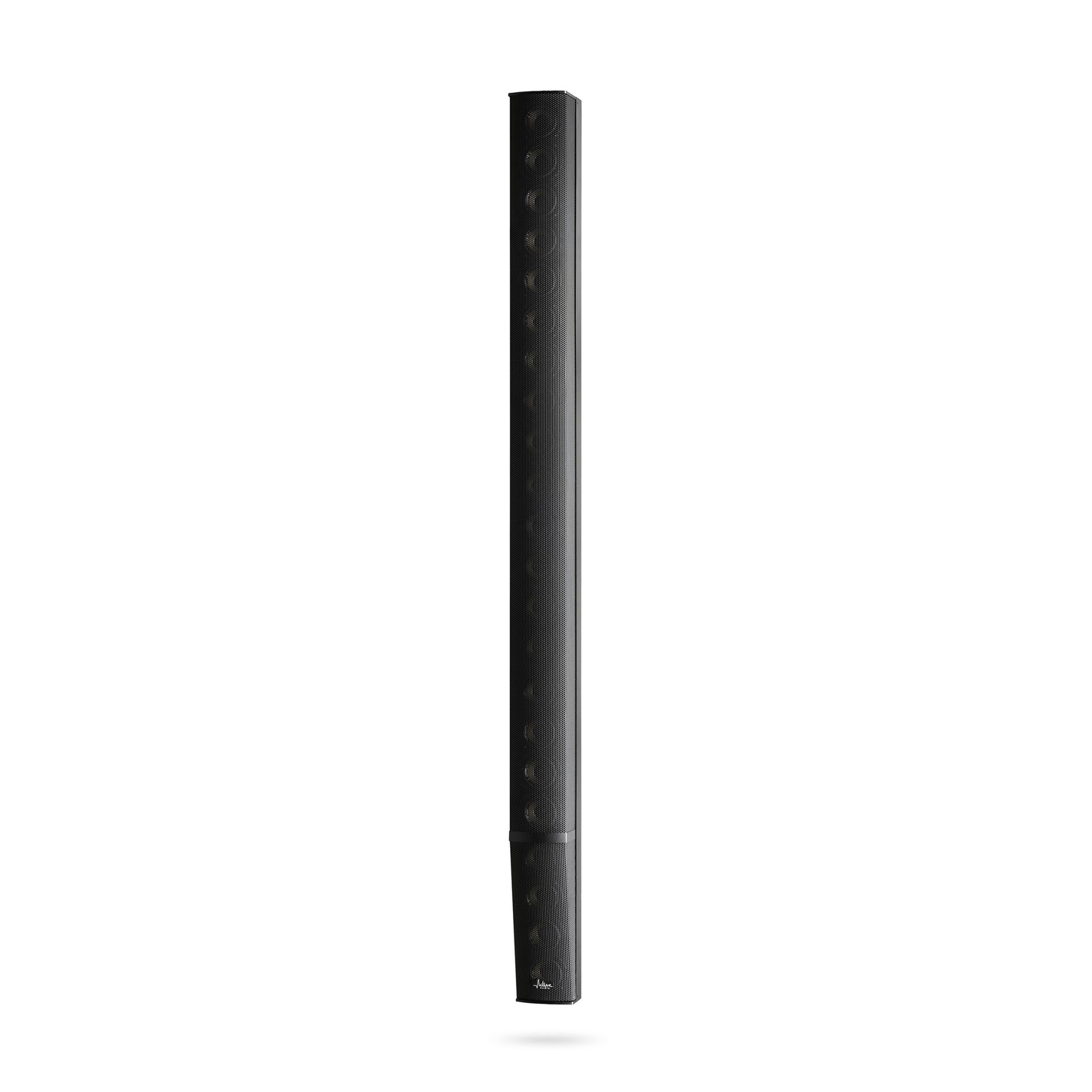

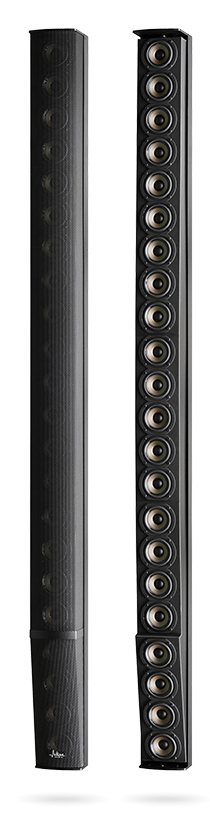

DSP column loudspeaker, 1.80m
For venues with raked seating
Designed for mid-sized spaces with a 5 to 20° rake
Range: 29m at ±5dB
Acoustical data |
|
| Max SPL | 95dBSPL @ 15m |
| Range ±3dB | ±3dB 22m |
| Range ±5dB | ±5dB 29m |
| Angle of audience | 5°-20° |
| Frequency bandwidth | (-10dB) 110Hz-19kHz |
| Horizontal opening angle | 180° |
Electrical data |
|
| Number of Channels | 3 |
| Nominal impedance | 8Ω |
| Cable | 4G |
| Connectors | Euroblock 12-pins |
Mechanical data |
|
| Dimensions (WxPxH) | 124mm x 135mm x 1840mm |
| Net / shipping weight | 17kg / 21kg |
| Colors | white, black |
