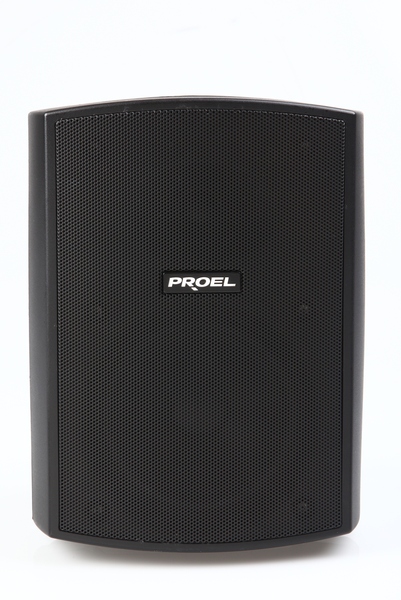

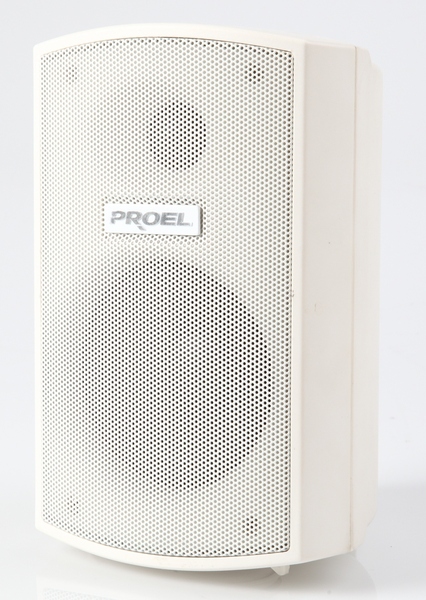

Two-way monitor, supplied with mounting bracket. Rear panel power selector allows the choice of the most suitable power. Binding post terminals on rear panel. Vertical or horizontal installation.
Type: 2-ways monitor
Speaker/s: W: 3.5’’ T: 1’’
RMS power: 15/7.5/4/2/1W
Constant voltage binding: 100/70V
Constant impedence binding: 8 ohm -30W
Frequency response: 70Hz -20KHz (-10dB)
SPL (1W/m): 85 dB
SPL MAX (Pmax @ 1m): 97 dB
Coverage Angle 1KHz/4KHz (-6dB): 150º/100º
Controls: POWER LEVEL SWITCH
Construction materials: ABS/Steel
Colour: Black/White
Dimensions (W x H x D): 130 x 198 x 130mm
Weight: 1.8 kg (3.969 lb)
Fixing system: U type steel bracket
Speaker/s: W: 3.5’’ T: 1’’
RMS power: 15/7.5/4/2/1W
Constant voltage binding: 100/70V
Constant impedence binding: 8 ohm -30W
Frequency response: 70Hz -20KHz (-10dB)
SPL (1W/m): 85 dB
SPL MAX (Pmax @ 1m): 97 dB
Coverage Angle 1KHz/4KHz (-6dB): 150º/100º
Controls: POWER LEVEL SWITCH
Construction materials: ABS/Steel
Colour: Black/White
Dimensions (W x H x D): 130 x 198 x 130mm
Weight: 1.8 kg (3.969 lb)
Fixing system: U type steel bracket
