V PLUS series is the evolution of the acclaimed V series of PROEL powered loudspeakers delivering absolute value in terms of performance, engineering and design at a more affordable cost.
These ultra-portable speakers combine, in carefully engineered and light-weight cabinets, the clearest and most accurate PROEL sound with Class D amplifier technology and Switch Mode Power Supply, offering an unbeatable PA solution at its price point.
V8PLUS features an extremely efficient amplifier module capable of delivering 400 W of robust power to the transducers. Thanks to the use of SMPS technology, this power comes in an ultra-lightweight package, making the V PLUS models the most portable PROEL speakers ever. The power module is hosted in a fully sealed aluminium box, which provides protection, perfect insulation of the cabinet from the outside and extremely efficient cooling.
Thanks to the carefully selected speakers and to the sophisticated active electronics, including dual CLIP LIMITERS for an undistorted sound even at the loudest level, the sound of the V8PLUS has been precisely tuned in every details, in order to provide unheard performance in this price range.

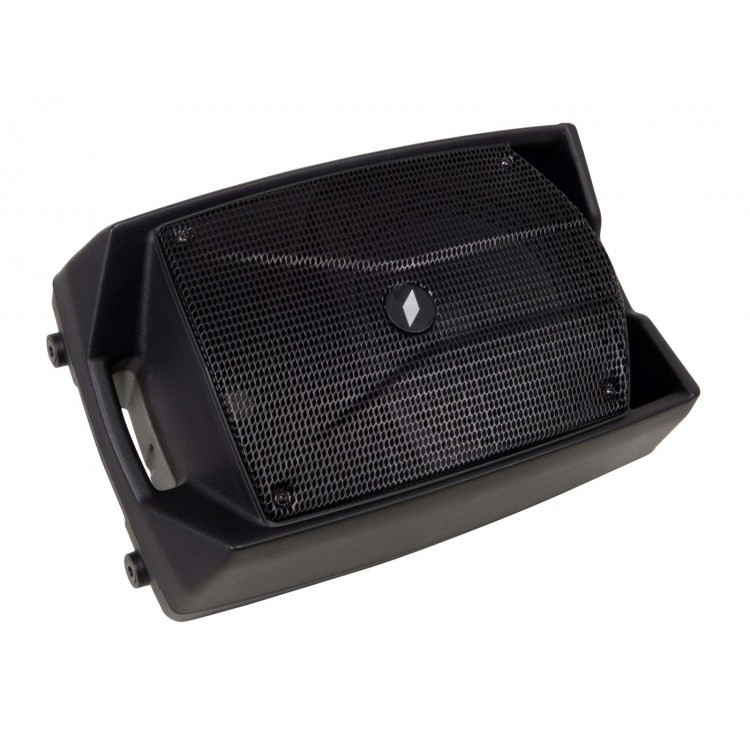

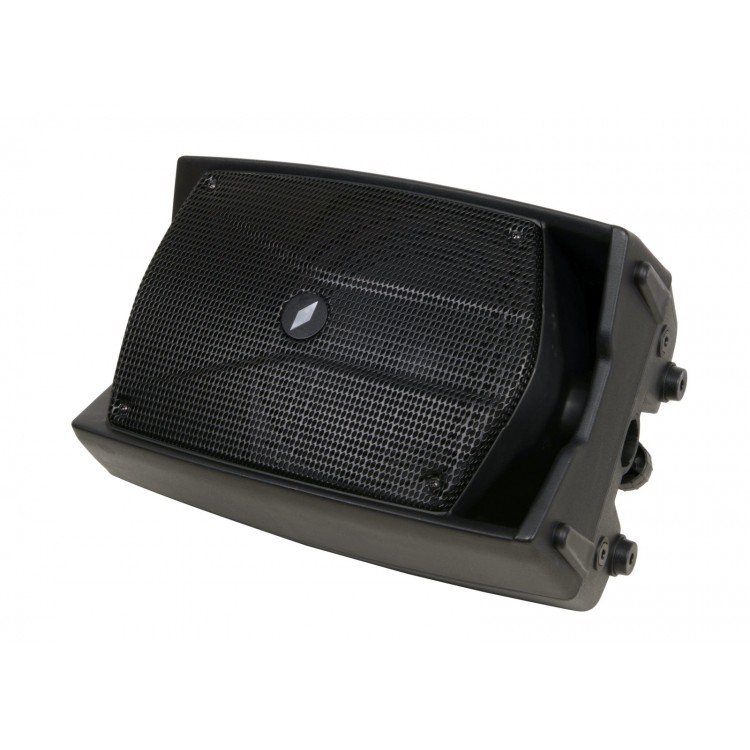

The V8PLUS cabinet, expression of the most advanced Italian design, includes a super-comfortable luggage-style top handle for an effortless portability. The slanted shape allows the speaker to be laid on its side and used also as stage monitor.
• 2-way bi-amped loudspeaker system
• 1” NEODYMIUM compression driver
• Constant coverage 90° x 60° horn
• High-excursion 8” woofer with 1.5” VC
• 400 W Class D power amplifier with SMPS
• Integrated active processor with dual LIMITER circuit
• MIC/LINE input with 2-band EQ
• Front LED with ON or SIGNAL/CLIP selection
• SPL MAX: 121 dB
• Frequency response: 70 Hz - 20 kHz
• Ultra-lightweight reinforced polypropylene cabinet
• Top handle for effortless transport
• Slanted shape for the use as a stage monitor
• Four M8 flying points
• 7 kg total weight
|System type||2-way vented enclosure|
|High Frequency Device||1” neodimyium compression driver|
|Low Frequency Device||8” woofer with 1.5” voice coil|
|Angular Coverage||90° H x 60° V|
|Total peak power||400 W|
|HF Amplifier Continuous Power||50 W Class AB|
|LF Amplifier Continuous Power||150 W Class D|
|Frequency Response||70 Hz - 20 kHz|
|Max SPL||121 dB|
|Connectors||IN: COMBO, LINK: XLR M|

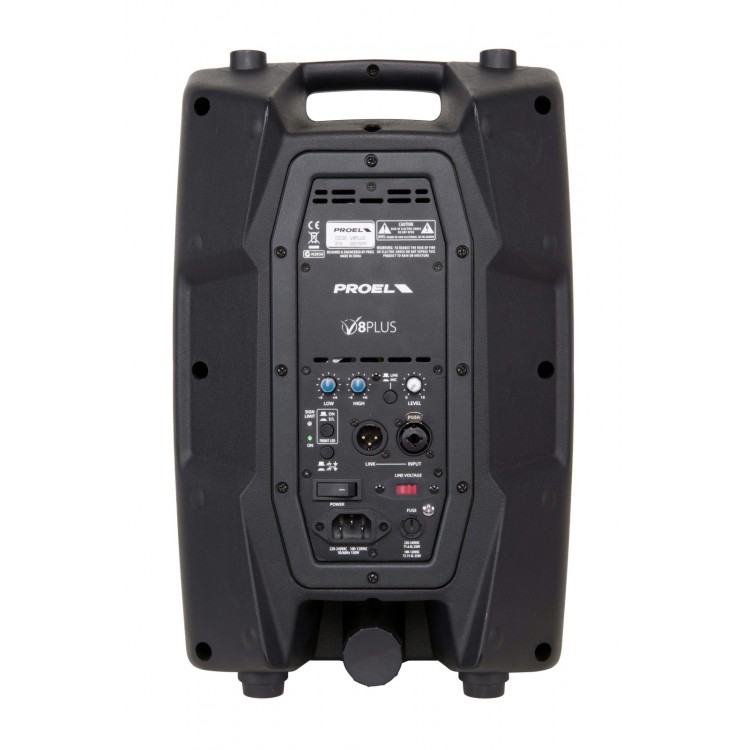

|Controls||LEVEL, LINE/MIC selector, LOW EQ, HIGH EQ, GND LIFT, FRONT LED selector|
|Flying System||4 x M8 - top/bottom|
|Handles||1 x top|
|Mounting Pole||1 x bottom|
|Power Supply||230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector|
