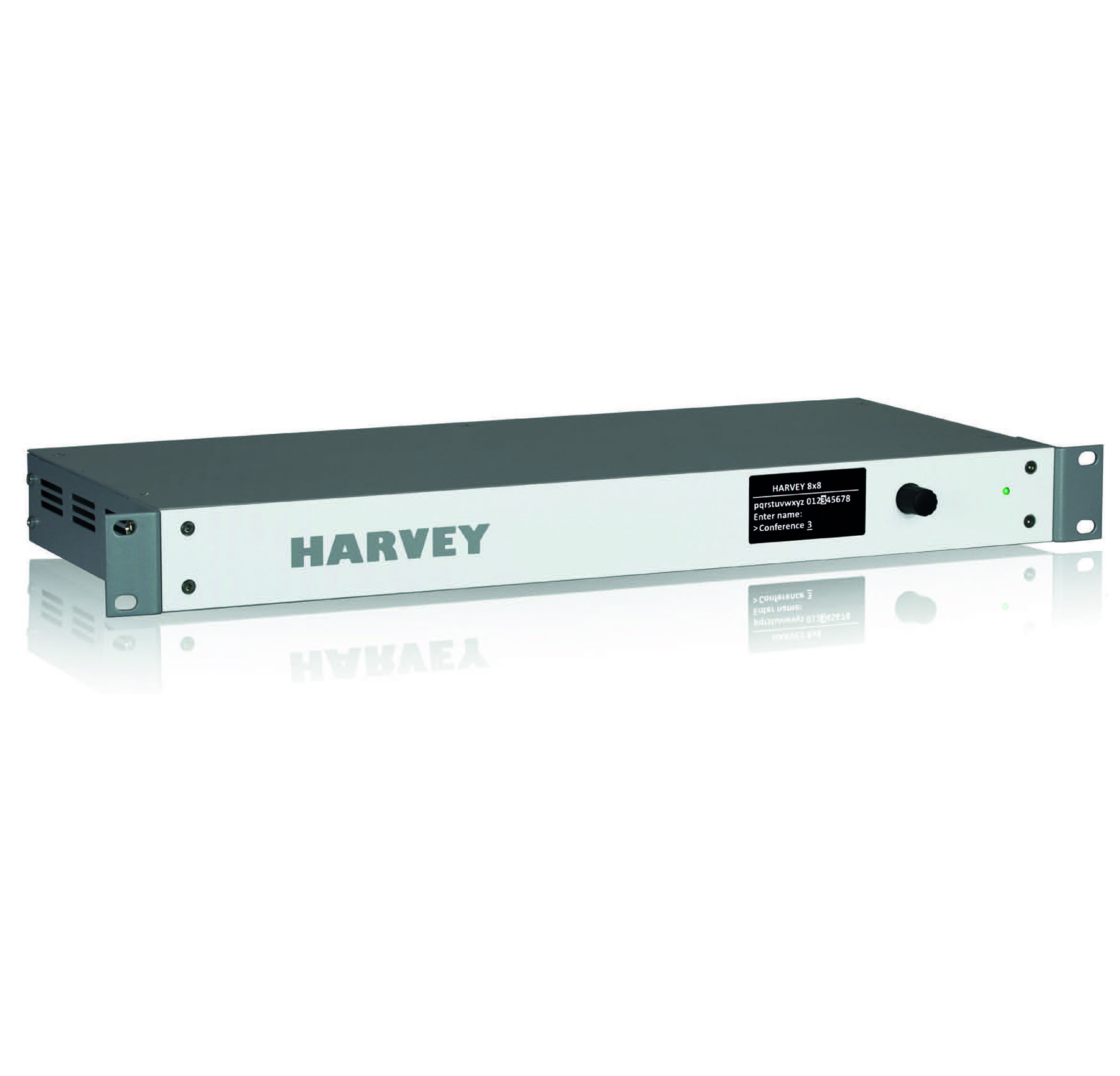

HARVEY Pro 16X16
The new HARVEY product line, previously known as HARVEY 8x8 or HARVEY 8x8-DA, is now called HARVEY Pro.
The name suffix "Pro" serves to clearly identify the current series, technically nothing changes.
HARVEY Pro is available in various IO configurations, which are appended to the name, e.g. HARVEY Pro 8x8, HARVEY Pro 16x8 or HARVEY Pro 8x8-DA.
Due to the available stock, the transition in the device name is smooth. From now on, the order should be placed under the name HARVEY Pro. If necessary, orders for a transition phase will be confirmed with HARVEY in order to keep the order designation consistent with the designation of the delivered goods.
In addition to audio signal processing, lighting and media control, HARVEY Pro allows for a flexible response to different market requirements with regard to the number of channels. The audio input and output channels can be scaled in steps of 4, allowing HARVEY Pro to cover the spectrum from small projects with an 8×8 audio matrix to special applications with e. g. 4×24 channels. An appealing wall-mounted remote control for the most important functions completes the product portfolio.
|Level, Mixer||Mixing matrix
Mixing matrix with crosspoint delay
|Equalizer||8-Band parametric equalizer
Filter (highpass, lowpass, hi-shelf, lo-shelf)
Automatic Volume Control (AVC)
Automatic Gain Control (AGC)
|Delay||Delay-up to 1000 ms for each delay block|

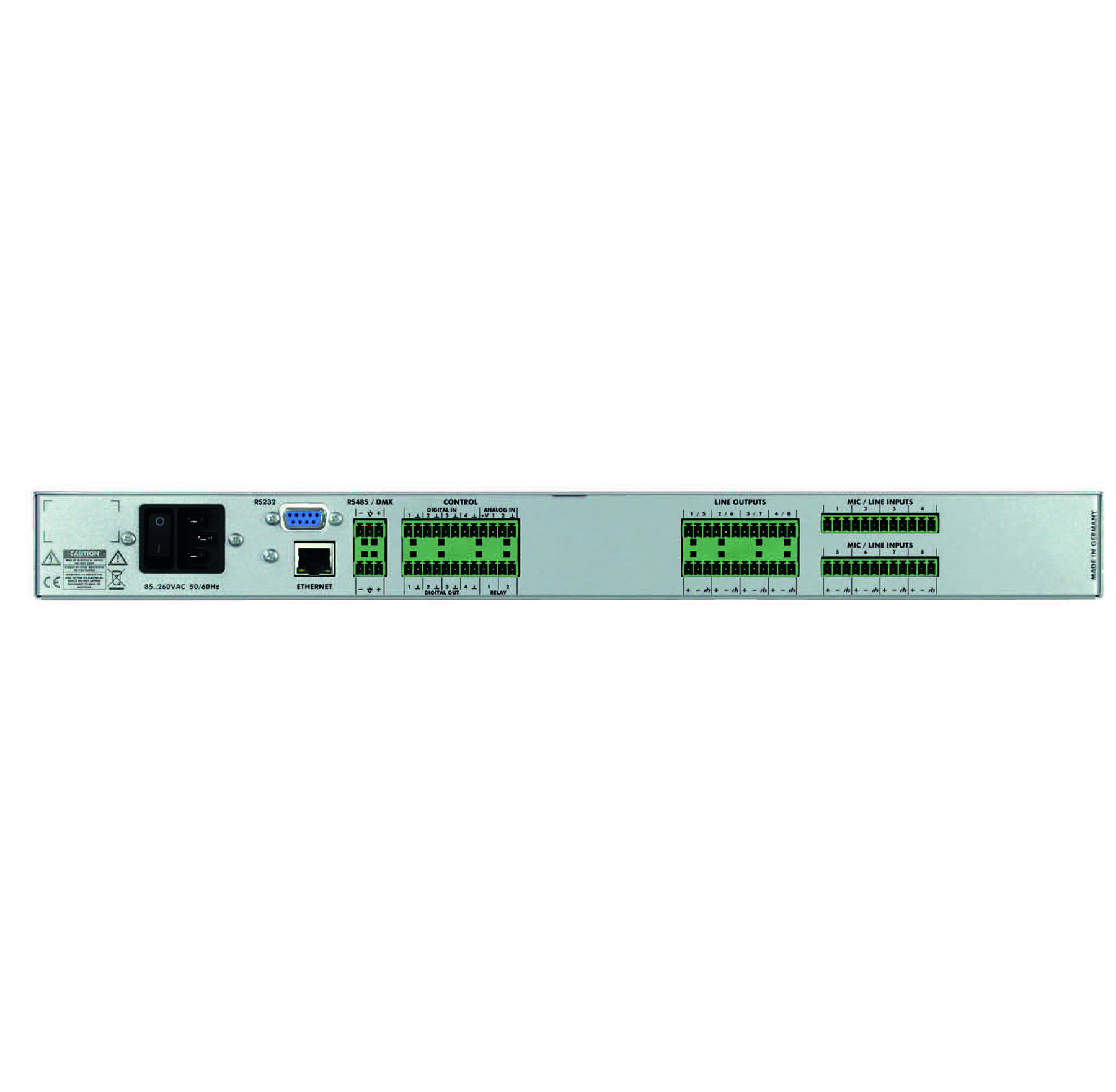

|I/O Interfaces||RS 485 DMX, RS 232
|Protocols||Proprietary (binary, text based)
User defined messages
Thresholds (Level, DMX)
Input Contacts, Messages
Block states (e.g. Ducker)
Block states (e.g. Level mute)
|Gain control||Input Voltage mapping
DMX value mapping
