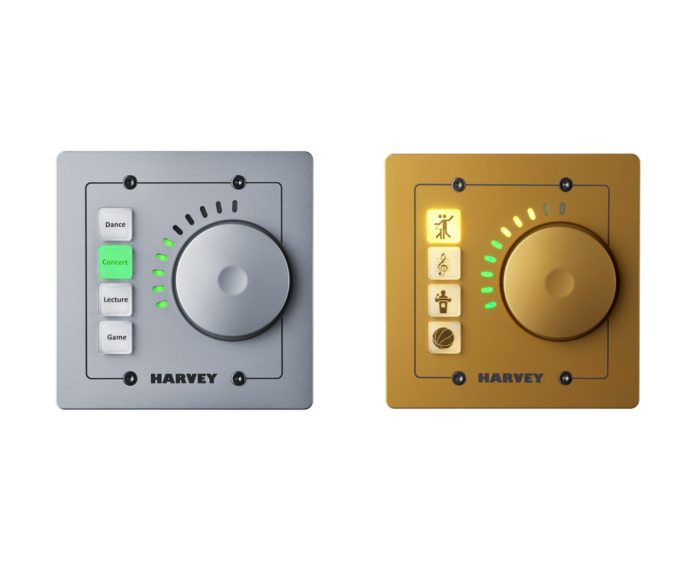

Remote control with metal front plate for US 2 gang flush-mounted box in various paint finishes (silver, anthracite, gold)
HARVEY RC4 is a programmable, Ethernet-based wall-mount remote control. RC4 is capable to control presets, audio levels or DMX-lamps. All RC4 LEDs and buttons can be individually customized in their color and brightness.
| Push buttons | 4x with integrated RGB LED; brightness and colour freely definable in HARVEY Composer; foil labels can be inserted for push button labelling; functions programmable in HARVEY Composer: preset call, logic control |
| Rotary Knob | Endless rotary encoder with integrated push button; functions programmable in HARVEY Composer: audio level, mute control, DMX control |
| LED Ring | 10x RGB LED; display fader position, mute status for level control and device status |
| Data Link | 10/100 Mbps Ethernet (100BaseT); standard IP protocol |
| Ethernet Cable Interface | RJ45 with activity/link/speed LED for standard network cable (e.g. CAT5) |
| Power Supply | PoE IEEE802.3af Class 3 (12,95 W) Actual power consumption: - nom. <5 W with all LEDs switched on at normal brightness - max. 10 W with all LEDs switched on at maximum brightness RJ45 interface: PoE power provision from IEEE802.3af Ethernet switches (endspan PoE) or alternatively PoE injectors (midspan PoE). |
| Mounting and Housing |
Aluminium front panel designed but not limited to be mounted onto two-gang US flush-mounted boxes. Distance of mounting holes: 1.8125” / 46 mm X 3.281” / 83.3 mm It is recommended a use a flush-mounted box with a depth of 60 mm to give the CAT cable enough space in the wall. |
| Dimensions | Shape of aluminium front panel and electronics: 110 mm x 110 mm x 28 mm, weight 100 g / 0.2 lbs. |
| Colour | Aluminium anodized; other colours available on request |
