R110

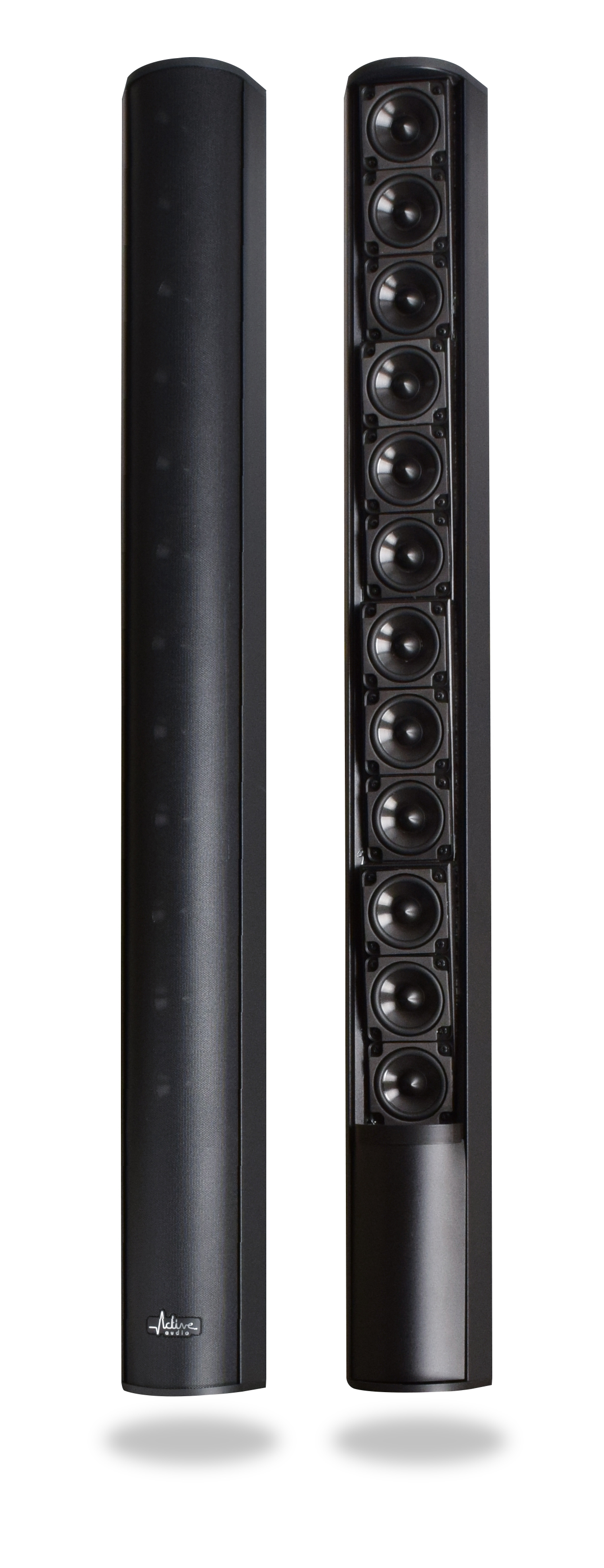

Column loudspeaker (1.10m)
This speaker is suited to mid-sized venues, whether standalone or as part of a distributed system: churches, conference rooms, station platforms, shopping malls, etc.
This has been our bestselling speaker since its release
Available in three versions: 8Ω, 8Ω/100V and 8Ω/100V/EN 54.
Range: 20m at ±5dB
Acoustical data |
|
| Max SPL | 92dBSPL @ 8m |
| Sensitivity | 72dB/1W @ 8m |
| Range ±3dB | 15m |
| Range ±5dB | 20m |
| Frequency bandwidth | (-10dB) 120Hz-18kHz |
| Horizontal opening angle | ±100° (1kHz) / ±70° (4kHz) |
| Vertical directivity | Wavefront synthesis |
Electrical data |
|
| Continous power | 150W |
| Nominal impedance | 8Ω |
| Connectors | Lever quick connector with loop-through |
| Protection | Thermal fuse |
| Certification | EN54-24 certified |
Mechanical data |
|
| Dimensions (WxPxH) | 128mm x 117mm x 1115mm |
| Net / shipping weight | 10.1kg / 10.9kg |
| Environment | IP54 (25° - 55°) |
| Colors | white, black |
