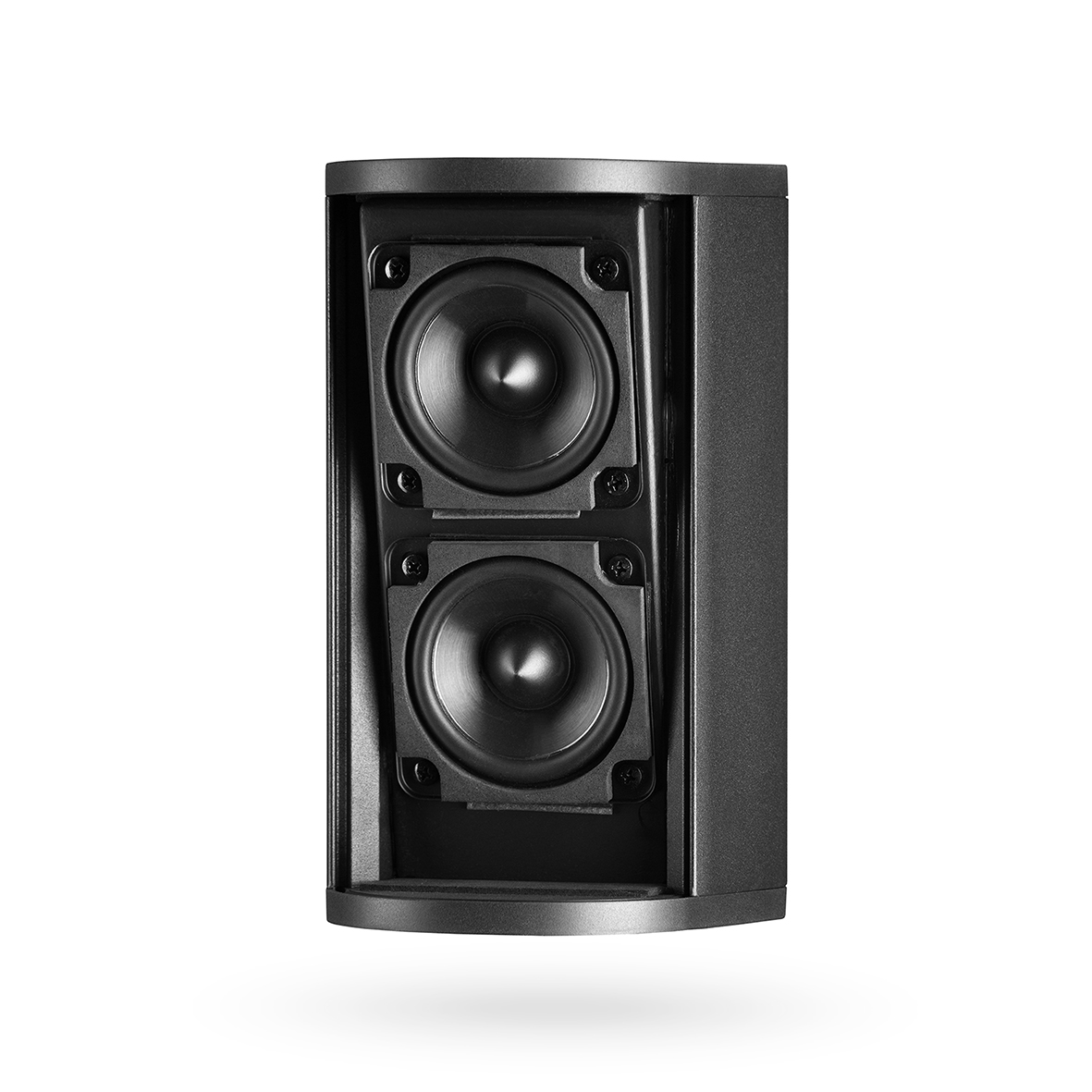

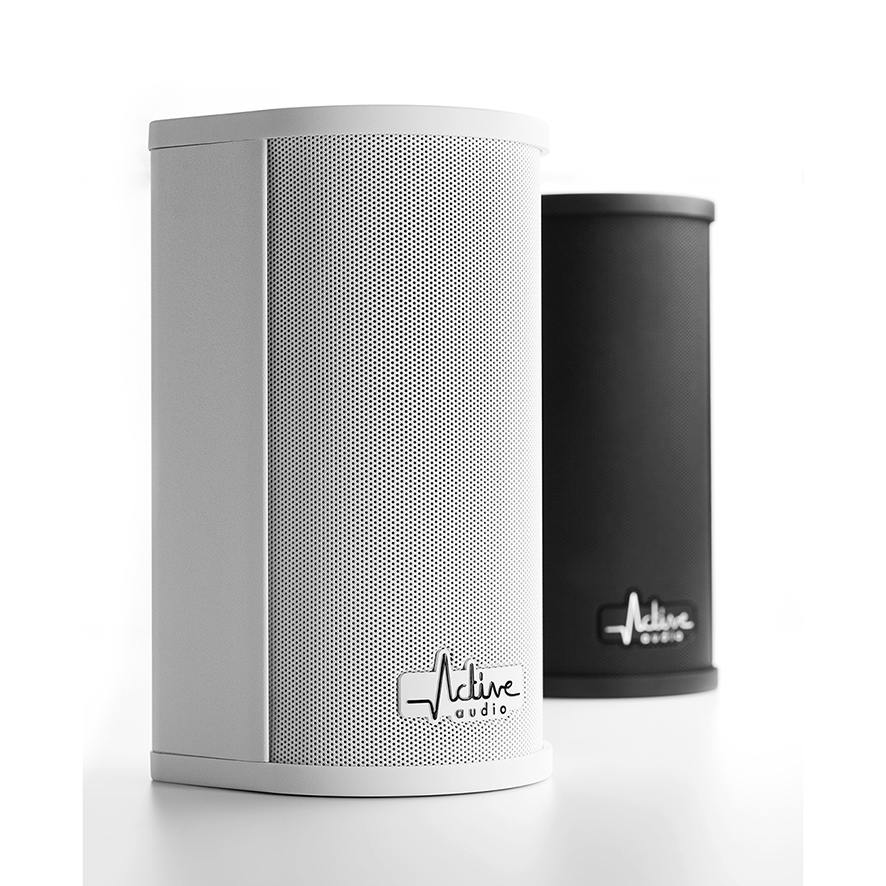

Rmini
Compact loudspeaker (20cm), 100V or 6Ω, EN 54-24 Type B-compatible
Specifically designed for corridors and transit areas (stations, airports and subways) or to complement other column loudspeakers in the range for confined areas
Range: 5m at ±5dB
Acoustical data |
|
| Max SPL | 91dBSPL @ 1m |
| Sensitivity | 84dB/1W @ 1m |
| Range ±3dB | 3.2m |
| Range ±5dB | 5m |
| Frequency bandwidth | (-10dB) 120Hz-18kHz |
| Horizontal opening angle | ±100° (1kHz) / ±70° (4kHz) |
| Vertical directivity | Wavefront synthesis |
Electrical data |
|
| Continous power | 30W |
| Nominal impedance | 6Ω |
| Connectors | Lever quick connector with loop-through |
| Protection | Thermal fuse |
| Certification | EN54-24 certified |
Mechanical data |
|
| Dimensions (WxPxH) | 128mm x 117mm x 192mm |
| Net / shipping weight | 2kg / 2.7kg |
| Environment | IP54 (25° - 55°) |
| Colors | white, black |
