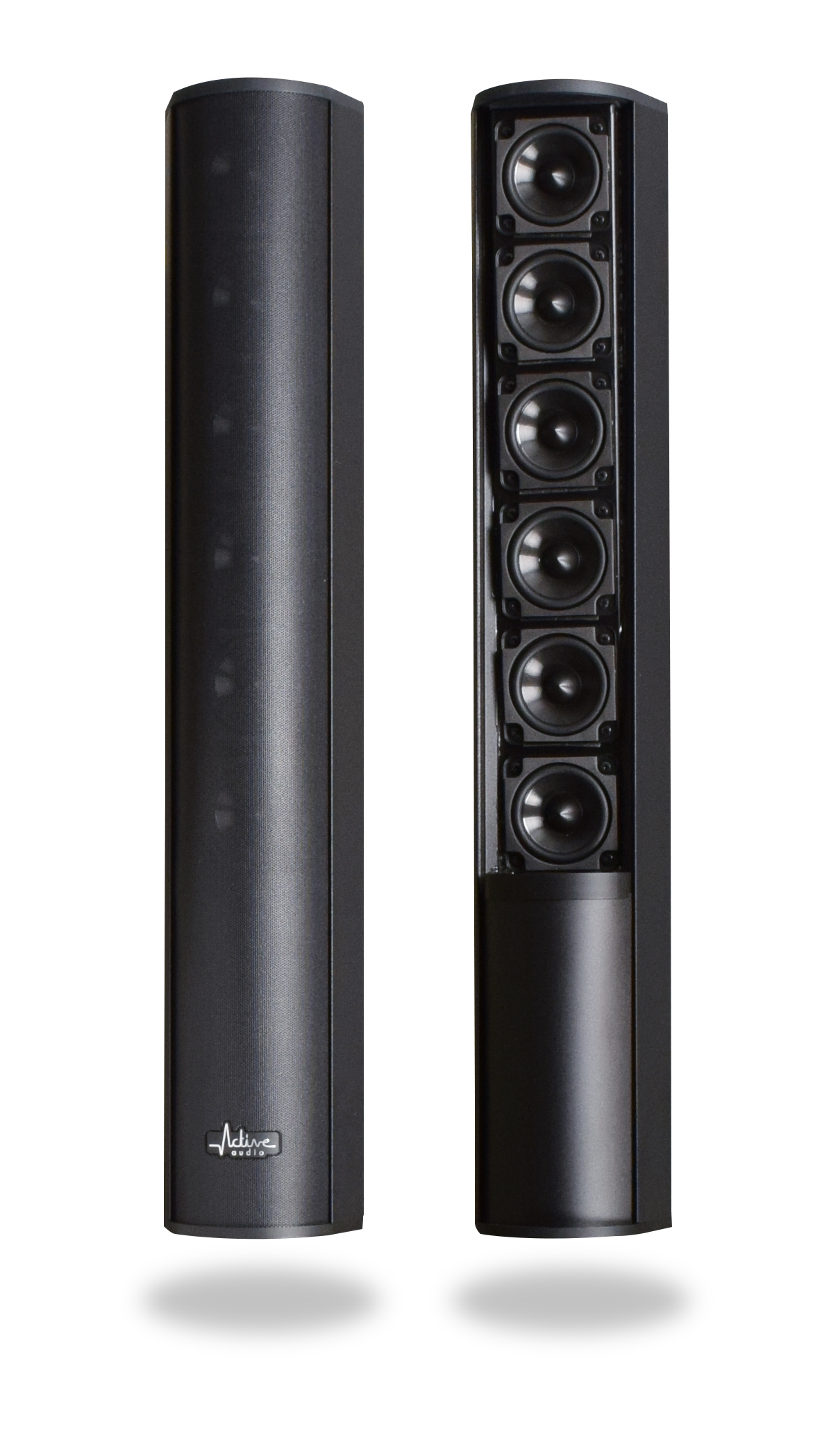

R70
Column loudspeaker (70cm), 100V or 8Ω, EN 54-24 Type B-compatible
For small venues. This speaker is ideally suited to small conference rooms, boardrooms, medium-sized classrooms, and so on.
It can also be used to reinforce installations featuring R110 and R210 speakers.
Range: 12m at ±5dB
Acoustical data |
|
| Max SPL | 91dBSPL @ 5m |
| Sensitivity | 71dB/1W @ 5m |
| Range ±3dB | 6.5m |
| Range ±5dB | 12m |
| Angle of audience | 0°-5° |
| Frequency bandwidth | (-10dB) 120Hz-18kHz |
| Horizontal opening angle | ±100° (1kHz) / ±70° (4kHz) |
| Vertical directivity | Wavefront synthesis |
Electrical data |
|
| Continous power | 75W |
| Nominal impedance | 8Ω |
| Connectors | Lever quick connector with loop-through |
| Protection | Thermal fuse |
| Certification | EN54-24 certified |
Mechanical data |
|
| Dimensions (WxPxH) | 128mm x 117mm x 706mm |
| Net / shipping weight | 7.0kg / 7.5kg |
| Environment | IP54 (25° - 55°) |
| Colors | white, black |
